CP470

RM 78.00

Highlight

  • Service Box comes with 3 nos. of Outlet Panel:-

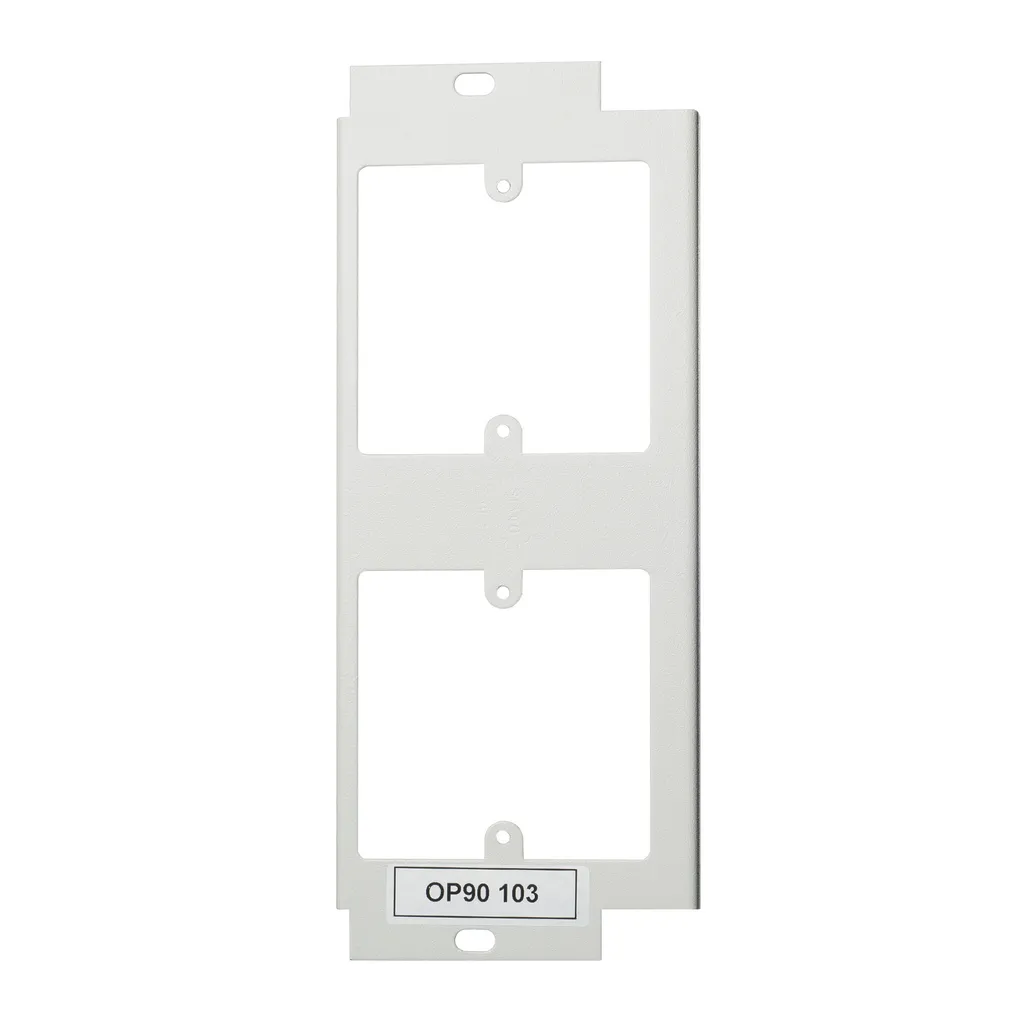

    • OP90103 - Cut-out in accordance to BS4662 2 x 1G
    • OP90434 - Cut-out in accordance to Davis 2 x 1G 13A Switched Socket Outlet
    • OP70C05 - 4 nos. Cut-out RJ45 37 x 22.5mm
  • Die-cast alloy 6mm recess for various floor finishes.
  • Service box trap and frames are made of high pressure die-cast alloy.
  • Frames, grommet handles and hinges are moulded from flame retardant engineering plastic (Nylon 66) to give greater mechanical strength.
  • Standard levelling screws and L-brackets are included.

Specification

BrandDavis
ModelCP470/3/25

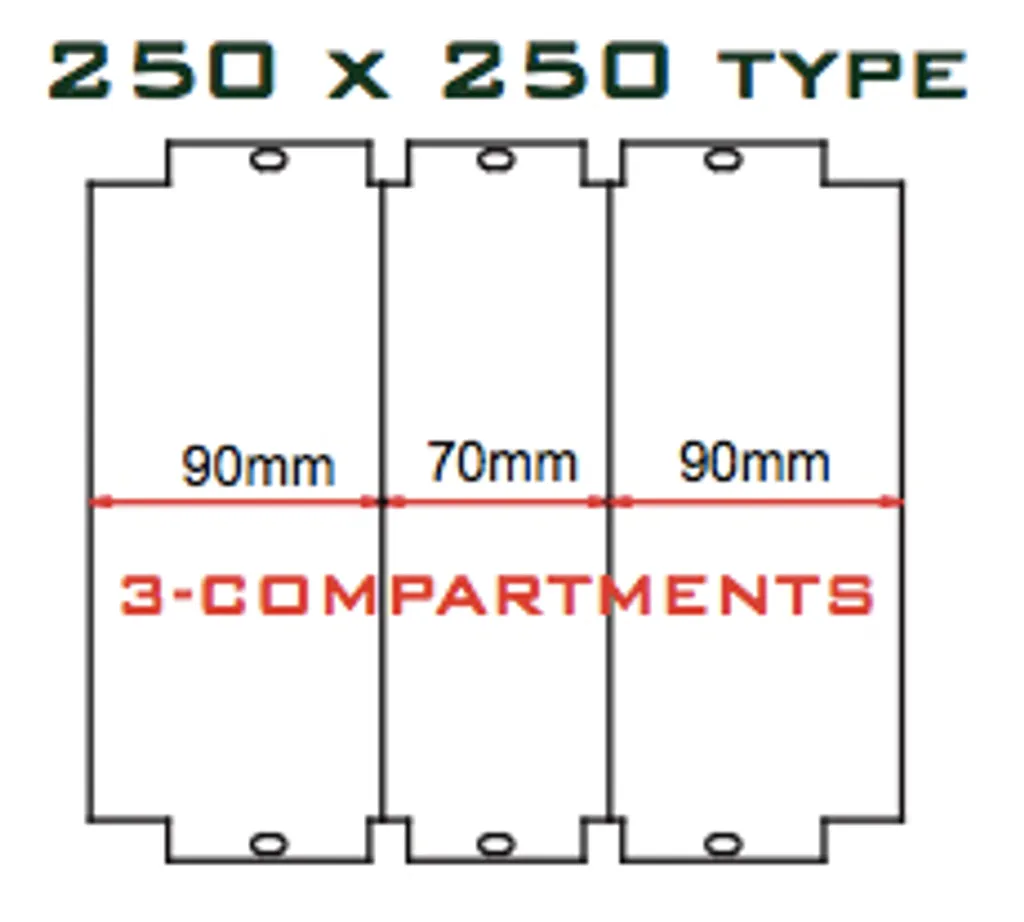

Type 250 x 250 x 25 (mm), 3 Compartment Underfloor Service Box
Colour Grey

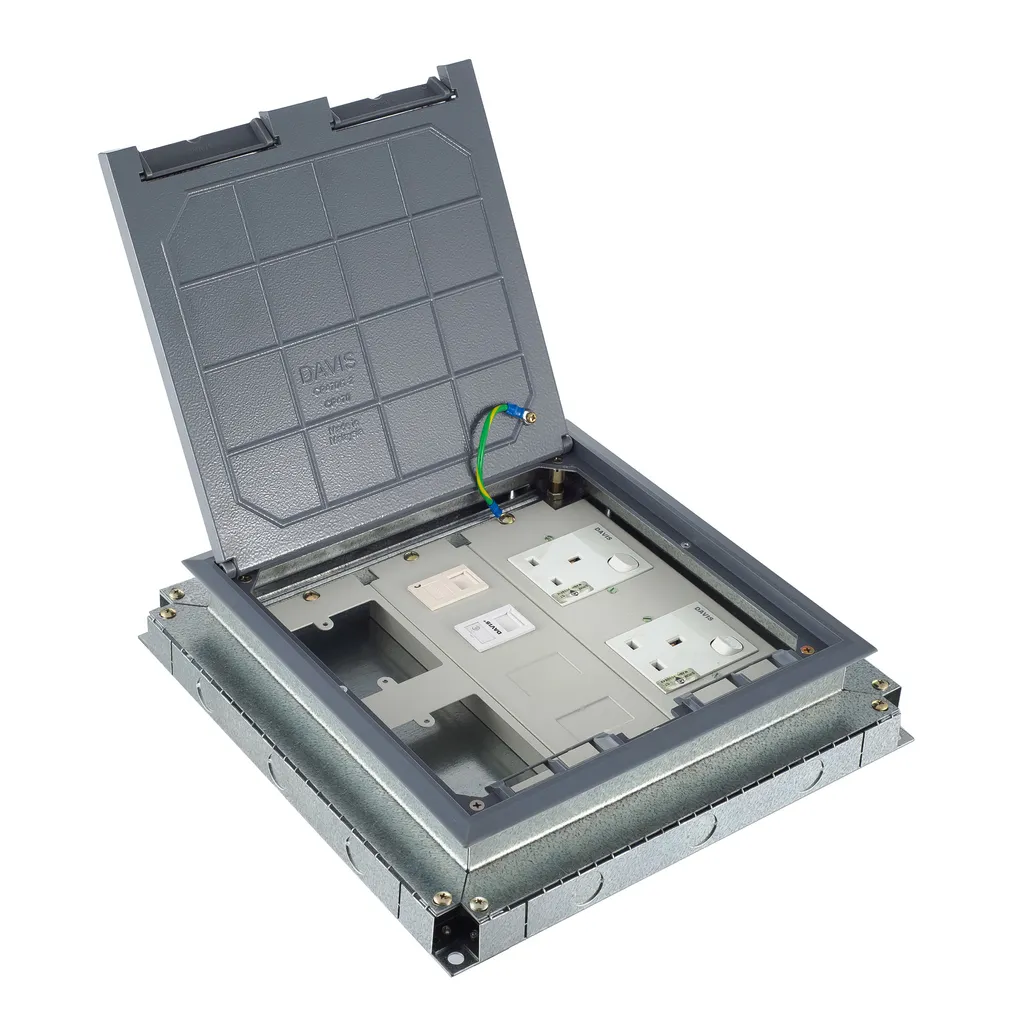

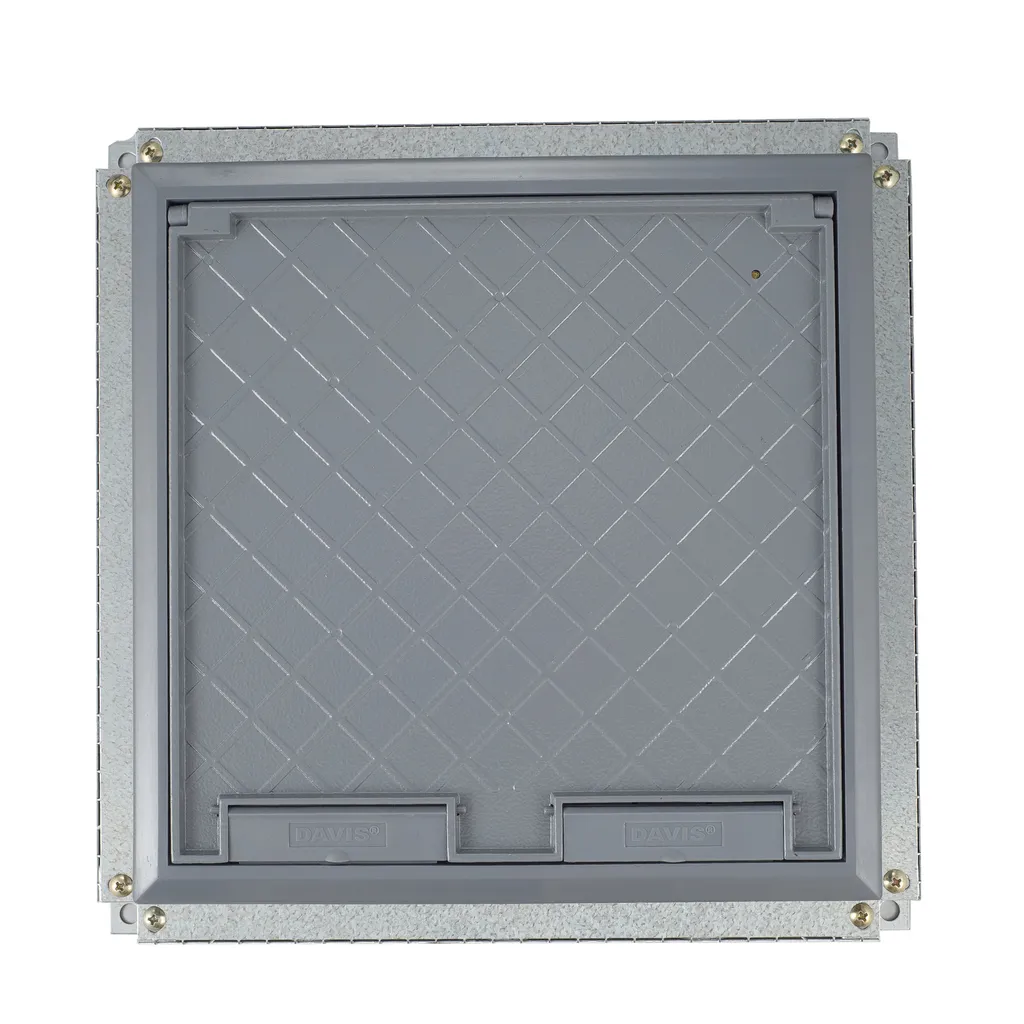

Product DescriptionCP470 Service Box, 3 Compartment, Die-Cast Alloy, 6mm recess
Weight (kg)3.9 (±0.5)
Product Size (cm) (Length x Width/Depth x Height)25 x 25 x 5.6
Package Size (cm) (Length x Width/Depth x Height)
34.2 x 34.2 x 7
Warranty Period30 days
